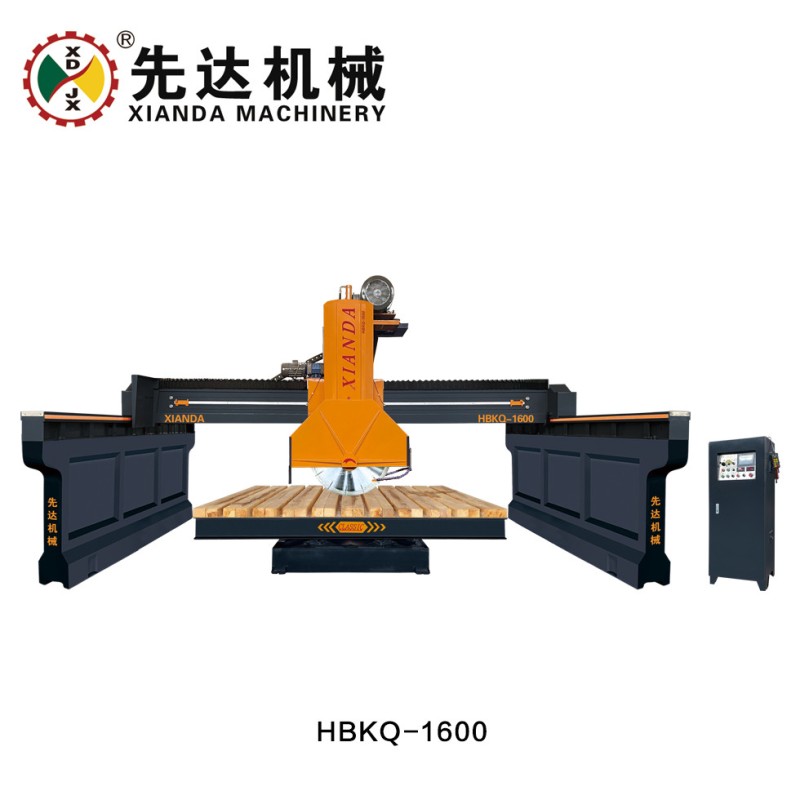

Efficient Heavy Type Middle Block Bridge Saw Cutting Machine
| Attribute |
Value |
| Table Movement |
Automatic |
| Power Supply |
AC |
| Main Motor |
22-8/30-8KW |
| Outline Dimension |
6600*4800*4750mm |
| Warranty |
1 Year |
| Trolley Size |
3000*2000mm |
| Blade Diameter |
1200-1600mm |
Technical Specifications
| Parameter |
Unit |
HBKQ-1600 |
| Blade diameter |
mm |
1200-1600 |
| Trolley size |
mm |
3000*2000 |
| Worktable rotating angle |
° |
0-90° |
| Outline dimension |
mm |
6600*4800*4750 |
| Main motor |
kw |
22-8/30-8(optional) |
| Gross power |
kw |
30/38(optional) |
| Gross weight |
kg |
8600 |
| Water consumption |
m³/h |
5 |
Product Overview
This CNC Bridge Saw Cutting Machine features a unique design for cutting and processing various materials. With dimensions of 6600×4800×4750mm, it's ideal for large-scale projects. The integrated safety system ensures secure operation, while the 1200-1600mm blade diameter accommodates diverse cutting requirements. The machine combines advanced cutting technology with user-friendly operation for maximum efficiency.
Applications
The XIANDA MACHINERY HBKQ-1600 Bridge Saw Cutting Machine is a powerful stone processing solution manufactured in Jinjiang, Fujian, China under strict quality control. Certified with API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF, it meets international standards for industrial cutting equipment.
Customization Options
XIANDA MACHINERY provides customized HBKQ-1600 Bridge Saw Cutting Machines with flexible configuration options. Available with a minimum order quantity of one set, these machines can be tailored to specific operational requirements while maintaining all standard certifications and safety features.
Support and Services
- Professional installation assistance
- Comprehensive operation training
- Maintenance and troubleshooting support
- Genuine spare parts supply
- Regular upgrades and improvements
Packaging and Shipping
The machine is securely packaged in reinforced wooden cases for sea transportation and shipped via reliable carriers to ensure safe and timely delivery worldwide.
Frequently Asked Questions
Q1: What is the Brand Name of the Bridge Saw Cutting Machine?
A1: XIANDA MACHINERY
Q2: What is the Model Number of the Bridge Saw Cutting Machine?
A2: HBKQ-1600
Q3: Where is the Bridge Saw Cutting Machine manufactured?
A3: Jinjiang, Fujian, China
Q4: What certifications does the Bridge Saw Cutting Machine have?
A4: API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF
Q5: What are the payment terms?
A5: L/C, T/T, D/P, , Paypal, , and others
