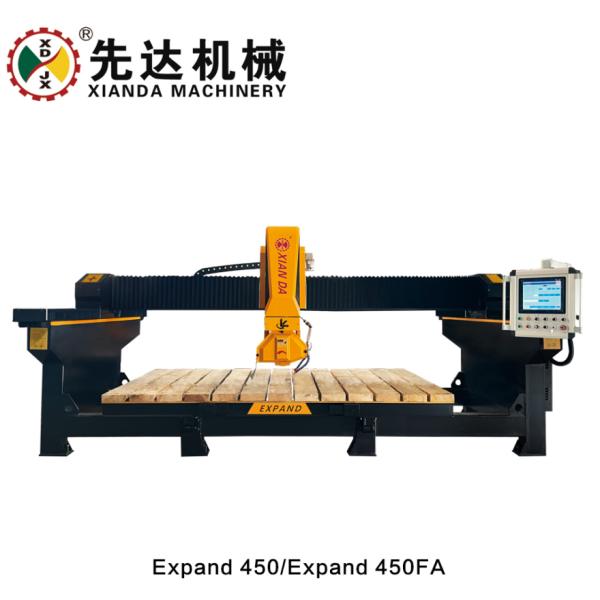

4 Axis Bridge Cutting Machine With High Cutting Speed For Stone Processing
Product Specifications
| Attribute | Value |
| Power Supply | Electricity |
| Cutting Depth | High Depth |
| Name | Stone Edge Cutting Machine |
| Power | 18.5KW |
| Weight | 6500KG |
| Cutting Method | Laser Cutting |
| Max Processing Size | 3200mm*2000mm*100mm |
| Operation | Automatic, Manual |
Technical Parameters
| Parameter | Unit | Expand 450 | Expand 450FA |
| Control system type | / | 4 Axis System | Normal 5 Axis System |
| Blade diameter | mm | 350-450 | 350-450 |
| Worktable size | mm | 3200*2000 | 3200*2000 |
| Max processing size | mm | 3200*2000*100 | 3200*2000*100 |
| Worktable tilting degree | ° | 0-85° | 0-85° |
| Cutting head rotation degree | ° | 0-360° | 0-360° |
| Cutting head rotation control mode | / | Servo motor control | Servo motor control |
| Cutting head chamfer rotating degree | ° | 0-45°(Hydraulic Control) | 0-90°(Servo Control) |
| Main motor power | kw | 15 | 18.5 (Permanent magnet motor) |
| Outline dimension | mm | 5000*3100*2700 | 5000*3100*2700 |
| Water consumption | m³/h | 3 | 3 |
Product Overview

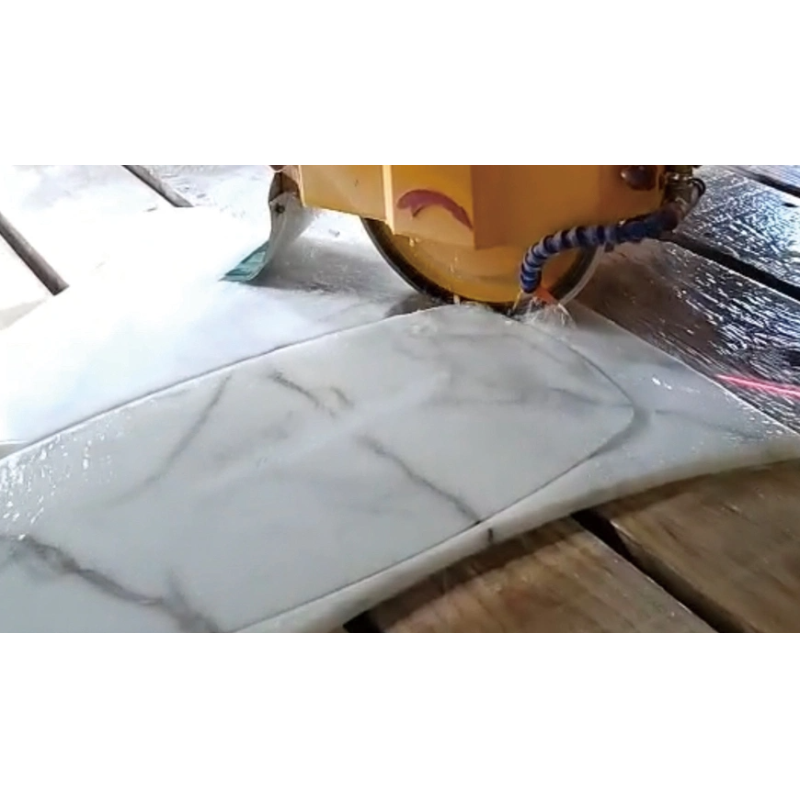

The 4 Axis bridge cutting machine adopts four-axis linkage CNC system control, featuring bus absolute value servo (with power-off memory function), high-precision linear guide, ball screw drive, and oil-immersed track structure. This machine offers multi-function capabilities, high precision, and strong stability for superior stone processing performance.
Key Features
- Advanced 4-axis CNC control system
- High-precision linear guides and ball screw drives
- Oil-immersed track structure for durability
- Power-off memory function for uninterrupted operation
- Versatile cutting capabilities for various stone materials
Manufacturer Information
Brand Name: XIANDA MACHINERY
Place of Origin: Jinjiang, Fujian, China
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C, T/T, D/P, , Paypal, , Others
Supply Ability: 1000 Sets/Year
Customization Options
We offer comprehensive customization services to meet your specific requirements:
Customized model number to match your specifications
Additional certifications as required by your country or industry standards
Flexible pricing based on your budget and requirements
Custom packaging solutions for your shipping needs
Expedited delivery options when needed
Flexible payment terms to suit your financial preferences
Increased production capacity to meet your demands
Operation mode adjustments (automatic or manual)
Power supply modifications to match your electrical requirements
Branding customization to align with your corporate identity
Shipping Information
The Stone Edge Cutting Machine is carefully packaged to ensure safe delivery. Shipping costs vary by destination and method. Customers are responsible for any applicable customs and duties fees according to their country's regulations.
Frequently Asked Questions
Q: What is the brand name of this stone edge cutting machine?
A: The brand name is XIANDA MACHINERY.
Q: Where is this stone edge cutting machine made?
A: It is made in Jinjiang, Fujian, China.
Q: What certifications does this stone edge cutting machine have?
A: This machine has API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF certifications.
Q: What is the minimum order quantity for this stone edge cutting machine?
A: The minimum order quantity is 1 set.
Q: Is the price of this stone edge cutting machine negotiable?
A: Yes, the price is negotiable.
Q: How is this stone edge cutting machine packaged for transportation?
A: It is packaged in plastic and suitable for sea transportation.
Q: What is the delivery time for this stone edge cutting machine?
A: The delivery time is 1 month.
Q: What are the payment terms for this stone edge cutting machine?
A: The payment terms include L/C, T/T, D/P, , Paypal, , and others.
Q: What is the supply ability of this stone edge cutting machine?
A: The supply ability is 1000 sets per year.
