Auto Slicing CNC Diamond Wire Saw Machine For Profiling

Name: Auto Slicing CNC Diamond Wire Saw Machine For Profiling
Brand: Xianda Machinery
Price: 1 USD

China Auto Slicing CNC Diamond Wire Saw Machine For Profiling factory

Max Processing Size : 3000*2500*1500mm

Wire Diameter : 0.6-1.8mm

Automation : Automatic

Wire Length : 10m

Water Consumption : 6m3/H

Control Type : CNC

Cutting Length : 20-60m

Diameter : 8.5mm to 11.5mm

Cutting Precision : High

Spindle : 15KW

Trolley Size : 1400*2500mm

Adjustment Distance : 450mm

Gross Motor : 11kw

Control System : PLC SYSTEM

Rated Power : 2.2kw

Brand Name : Xianda Machinery

Model Number : CNC-2000/2500/3000

Certification : CE

Place of Origin : Jinjiang, Fujian, China

Delivery Time : 30 days

Product name : Cutting Diamond Saw Saw Machine For Stone

Model NO. : CNC-2000/2500/3000

Material : Casting

Wheel diameter : 1600mm

Wire speed : 0-40m/s

Table bearing weight : 15T

MOQ : 1

Price : To Be Negotiable

Payment Terms : L/C, T/T, D/A, D/P, T/T, ,

Supply Ability : 1000 Sets/Year

Packaging Details : Plastic Package, Suitable for Sea Transportation.

Contact Now

Auto Slicing CNC Diamond Wire Saw Machine For Profiling

Product Specifications

Attribute	Value
Product name	Cutting Diamond Saw Saw Machine For Stone
Model NO.	CNC-2000/2500/3000
Material	Casting
Wheel diameter	1600mm
Wire speed	0-40m/s
Table bearing weight	15T
Max Processing Size	300025001500mm
Wire Diameter	0.6-1.8mm
Automation	Automatic
Wire Length	10m
Water Consumption	6m3/H
Control Type	CNC
Cutting Length	20-60m
Diameter	8.5mm to 11.5mm
Cutting Precision	High
Spindle	15KW
Trolley Size	1400*2500mm
Adjustment Distance	450mm
Gross Motor	11kw
Control System	PLC SYSTEM
Rated Power	2.2kw

Additional Information

Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS

Gross Weight: 5000kg

Outline Dimension: 6500*6300*3800mm

Water Consumption: 4m3/H

Max Processing Size: 3000*2000*1500mm

Function: Cutting Marble, Granite, Slate, Nature Stone, etc

Production Capacity: 1000 Sets/Year

Origin: Jinjiang, Fujian, China

Product Description

This CNC-controlled diamond wire saw machine features four-spindle linkage for processing circular stone slabs, columns, numerals, letters, Chinese characters, and various shapes with high precision and quality.

Auto Slicing CNC Diamond Wire Saw Machine For Profiling

Key Advantages

High-strength welding between diamond segment and steel blank
Exceptional cutting precision and fast cutting speed
Premium quality diamond and metallic bond materials
Manufactured with advanced technology and 10 years of experience

Applications

Stone quarrying, blocks trimming and profiling
Controlled demolition of concrete, reinforced concrete and steel structures
Variable speed wire saw machines for quarry and block cutting
DTH drills with complete pneumatic systems
Conventional diamond tools for stone processing

ALWAYS AT YOUR SERVICE -- XIANDA

Product Tags:

12" Cutting Diamond Saw Blades

14 inch diamond blade 3.2mm

16" Diamond Saw Blades

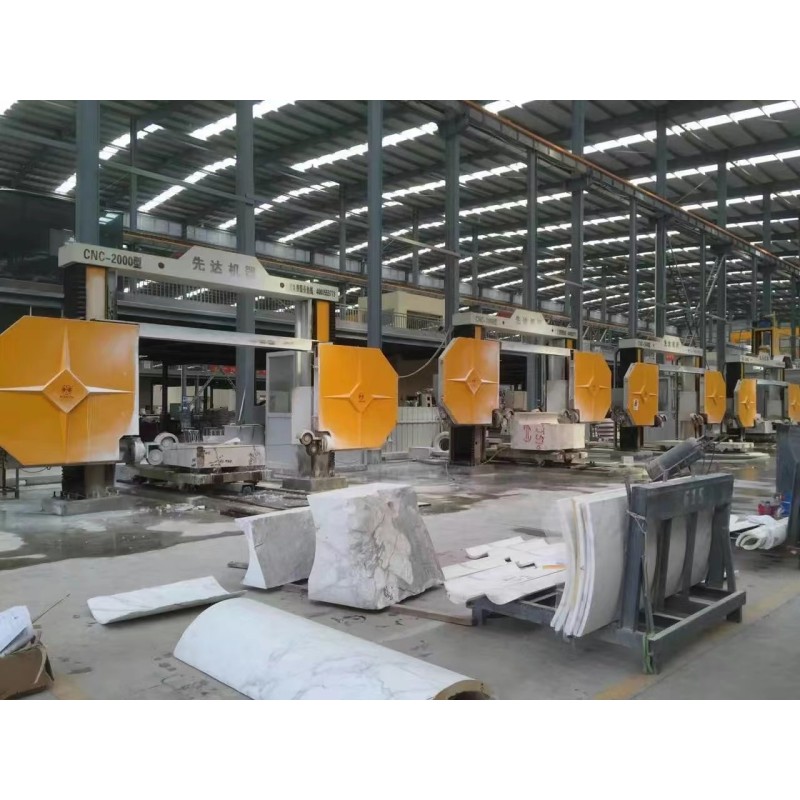

Auto Slicing CNC Diamond Wire Saw Machine For Profiling Images
